X1G0059010008|日本愛普生差分貼片晶振|進口有源晶振

編號：42831563
頻率：156.25MHz
尺寸：2.5×2.0×0.74mm

SG2520VGN石英晶體振蕩器,X1G0059010008晶振,日本愛普生晶振,LVDS差分貼片晶振,進口有源晶振,2520mm晶振,小體積晶振,頻率156.25MHz,電壓2.5V,工作溫度-40~105°C,頻率穩定性50ppm,無鉛環保晶振,低功耗晶振,智能影音系...

分享到

X1G0059010008|日本愛普生差分貼片晶振|進口石英晶體振蕩器 ,SG2520VGN石英晶體振蕩器,X1G0059010008晶振,日本愛普生晶振,LVDS差分貼片晶振,進口有源晶振,2520mm晶振,小體積晶振,頻率156.25MHz,電壓2.5V,工作溫度-40~105°C,頻率穩定性50ppm,無鉛環保晶振,低功耗晶振,智能影音系統晶振,便攜式多媒體設備晶振,服務器與存儲系統晶振.
X1G0059010008|日本愛普生差分貼片晶振|進口石英晶體振蕩器特點：
●頻率范圍:25MHz ~ 500MHz
●電源電壓:1.8 V(僅限LVDS) / 2.5 V/ 3.3 V類型
●頻率公差:±25 × 10-6，±50 × 10-6
●工作溫度:-40°C至+85°C，-40°C至+105°C
●功能:輸出使能(OE)或待機(S′T′)
●相位抖動:最大50 fs(391 MHz < o≤500 MHz, VCC = 2.5 V, 3.3 V)

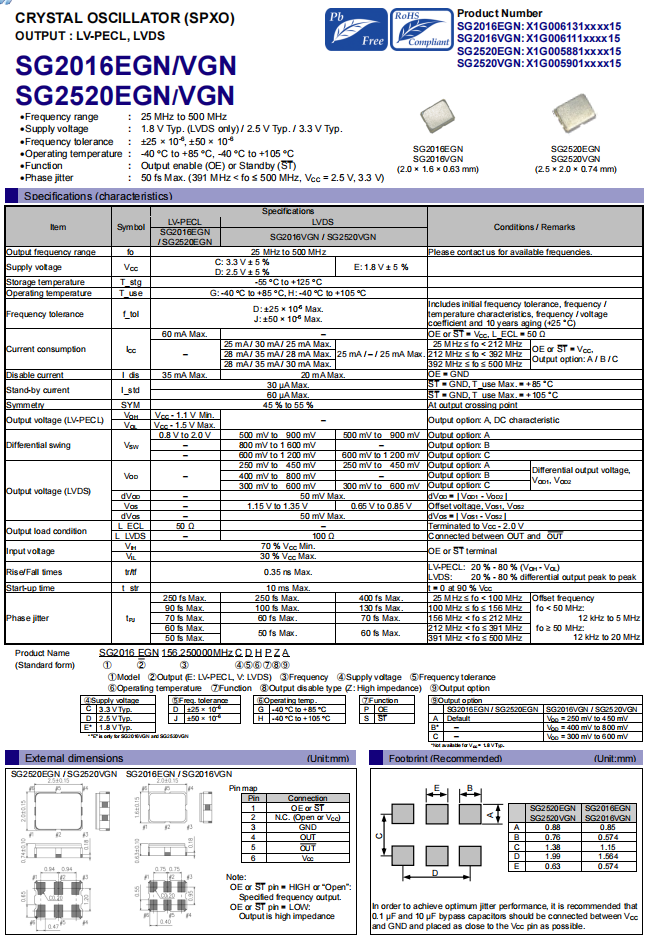

X1G0059010008|日本愛普生差分貼片晶振|進口有源晶振參數表

項目	符號	規格說明	條件
額定頻率	f_nom	156.25MHz	請聯系我們以便獲取其它可用頻率的相關信息
電源電壓	Vcc	2.5V
儲存溫度	T_stg	-55℃~+125℃	裸存
工作溫度	T_use	-40℃~ +105℃
頻率公差（標準）	f_tol	±50 ppm	+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電流消耗	f_tem	25mA Max	25 MHz ≤ fo < 212 MHz
禁用電流	I_dis	20mA Max	OE=GND
對稱性（占空比）	SYM	45%~55%	在輸出交叉點
輸出電壓	VOD	250mV to 450mV	Differential output voltage,VOD1, VOD2 Offset voltage, VOS1, VOS2
輸出電壓	VOS	1.15V to 1.35V
輸出負載條件	L_LVDS	100Ω	Connected between OUT and OUT
輸入電壓	VIH	70%Vcc Min	OE or ST terminal
輸入電壓	VIL	30%Vcc Max	OE or ST terminal
上升下降時間	tr/tf	0.35ns Max	LVDS:20 % - 80 % differential output peak to peak
起始時間	t str	10ms Max	Time at minimum supply voltage to be 0
相位抖動	tpj	60fs Max	156 MHz < fo ≤ 212 MHz

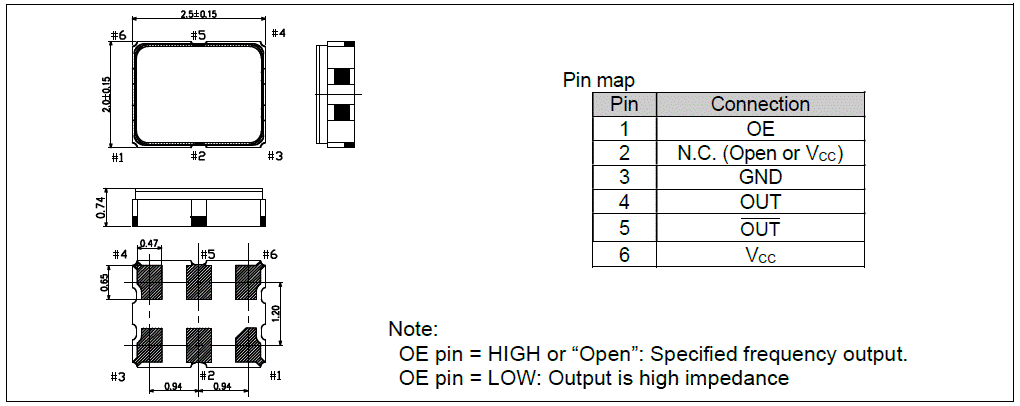

X1G0059010008|日本愛普生差分貼片晶振|進口有源晶振 尺寸圖

編碼	型號	頻率	LxWxH/尺寸	輸出方式	電源電壓	工作溫度
X1G0058810001	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0058810002	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0058810003	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0058810005	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C
X1G0059010001	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059010002	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059010003	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059010004	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G0059010006	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059010007	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 105 °C
X1G0059010008	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 105 °C
X1G0059210001	SG2520EHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0059410001	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410002	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059410003	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 105 °C
X1G0059410004	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410005	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G0059410006	SG2520VHN	155.520000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410007	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410008	SG2520VHN	174.703000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059410009	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 105 °C
X1G0059410010	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410011	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410603	SG2520VHN	400.000000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1G0059410604	SG2520VHN	400.000000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1G0059410605	SG2520VHN	467.529297 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
