首頁歐美晶振 SKYWORKS晶振航空航天晶振,Skyworks差分晶振,540AAA128M880BBG貼片晶振

航空航天晶振,Skyworks差分晶振,540AAA128M880BBG貼片晶振

編號：76166293
頻率：128.88MHz
尺寸：7050mm

航空航天晶振,Skyworks差分晶振,540AAA128M880BBG貼片晶振，美國Skyworks晶振公司，高品質進口晶振，歐美晶振，有源晶振，貼片晶振，7050晶振，小體積晶振，差分晶振，LVPECL晶振，Si540晶振，石英晶振，金屬面晶振，...

分享到

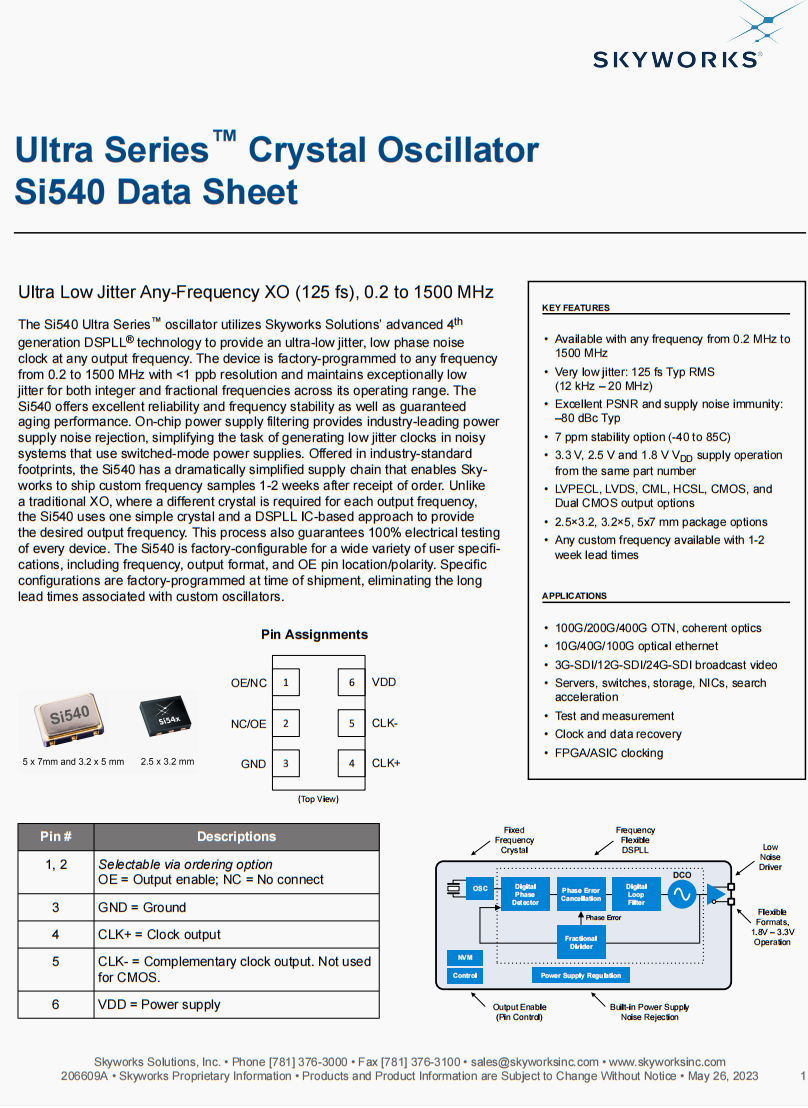

航空航天晶振,Skyworks差分晶振,540AAA128M880BBG貼片晶振，美國Skyworks晶振公司，高品質進口晶振，歐美晶振，有源晶振，貼片晶振，7050晶振，小體積晶振，差分晶振，LVPECL晶振，Si540晶振，石英晶振，金屬面晶振，100G/200G/400G OTN、相干光學、10G/40G/100G光以太網、3G-SDI/12G-SDI/24G-SDI廣播視頻、服務器、交換機、存儲、網卡、搜索、加速、測試和測量、時鐘和數據恢復、FPGA/ASIC時鐘.可提供10 MHz至945 MHz的任意速率輸出頻率，并可選擇頻率至1.4 GHz的第三代DSPLL®，具有卓越的抖動性能，頻率穩定性比基于saw的振蕩器高3倍。內部固定晶體頻率確保高可靠性和低老化?？商峁〤MOS, LVPECL, LVDS和CML輸出3.3,2.5和1.8 V電源選項，行業標準5 x 7 mm封裝和引腳無pb / rohs兼容

航空航天晶振,Skyworks差分晶振,540AAA128M880BBG貼片晶振

Parameter	Symbol	Test Condition/Comment	Min	Typ	Max	Unit
溫度范圍	TA		–40	—	85	ºC
頻率范圍	FCLK	LVPECL, LVDS, CML	0.2	—	1500	MHz
		HCSL	0.2	—	400	MHz
		CMOS, Dual CMOS	0.2	—	250	MHz
電源電壓	VDD	3.3 V	3.135	3.3	3.465	V
		2.5 V	2.375	2.5	2.625	V
		1.8 V	1.71	1.8	1.89	V
供應電流	IDD	LVPECL (output enabled)	—	100	145	mA
		LVDS/CML (output enabled)	—	75	111	mA
		HCSL (output enabled)	—	80	125	mA
		HCSL-Fast (output enabled)	—	88	137	mA
		CMOS (output enabled)	—	74	108	mA
		Dual CMOS (output enabled)	—	80	125	mA
		Tristate Hi-Z (output disabled)	—	64	100	mA
溫度穩定性		Frequency stability Grade A	–20	—	20	ppm
		Frequency stability Grade B	–10	—	10	ppm
		Frequency stability Grade C	–7	—	7	ppm
升降時間 (20% to 80% VPP)	TR/TF	LVPECL/LVDS/CML	—	—	350	ps
		CMOS / Dual CMOS (CL = 5 pF)	—	0.5	1.5	ns
		HCSL, FCLK >50 MHz	—	—	550	ps
		HCSL-Fast, FCLK >50 MHz	—	—	275	ps
占空比	DC	All formats	45	—	55	%
輸出啟動 (OE)2	VIH		0.7 × VDD	—	—	V
	VIL		—	—	0.3 × VDD	V
	TD	Output Disable Time, FCLK >10 MHz	—	—	3	µs
	TE	Output Enable Time, FCLK >10 MHz	—	—	20	µs
通電時間	tOSC	Time from 0.9 × VDD until output fre- quency (FCLK) within spec	—	—	10	ms

航空航天晶振,Skyworks差分晶振,540AAA128M880BBG貼片晶振

Skywork原廠編碼	生產商	型號	類型	頻率	輸出	電源電壓	頻率穩定度
536BB125M000DG	Skyworks晶振	Si536	XO	125 MHz	LVDS	3.3V	±20ppm
536FB125M000DG	Skyworks晶振	Si536	XO	125 MHz	LVDS	2.5V	±20ppm
536FB156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVDS	2.5V	±20ppm
536AB156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVPECL	3.3V	±20ppm
536BB156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVDS	3.3V	±20ppm
536AC125M000DG	Skyworks晶振	Si536	XO	125 MHz	LVPECL	3.3V	±7ppm
536AC156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVPECL	3.3V	±7ppm
536BB000172DGR	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	3.3V	±20ppm
536BB000175DGR	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	3.3V	±20ppm
536BB106M250DGR	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	3.3V	±20ppm
536BB150M000DGR	Skyworks晶振	Si536	XO	150 MHz	LVDS	3.3V	±20ppm
536BB155M520DGR	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	3.3V	±20ppm
536BB159M375DGR	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	3.3V	±20ppm
536BC000172DGR	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	3.3V	±7ppm
536BC000175DGR	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	3.3V	±7ppm
536BC000292DGR	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	3.3V	±7ppm
536BC000305DGR	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	3.3V	±7ppm
536BC106M250DGR	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	3.3V	±7ppm
536BC155M520DGR	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	3.3V	±7ppm
536BC159M375DGR	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	3.3V	±7ppm
536BC312M500DGR	Skyworks晶振	Si536	XO	312.5 MHz	LVDS	3.3V	±7ppm
536FB000172DGR	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	2.5V	±20ppm
536FB000175DGR	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	2.5V	±20ppm
536FB000292DGR	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	2.5V	±20ppm
536FB000305DGR	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	2.5V	±20ppm
536FB106M250DGR	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	2.5V	±20ppm
536FB150M000DGR	Skyworks晶振	Si536	XO	150 MHz	LVDS	2.5V	±20ppm
536FB155M520DGR	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	2.5V	±20ppm
536FB159M375DGR	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	2.5V	±20ppm
536FC000172DGR	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	2.5V	±7ppm
536FC000175DGR	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	2.5V	±7ppm
536FC000292DGR	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	2.5V	±7ppm
536FC000305DGR	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	2.5V	±7ppm
536FC000338DGR	Skyworks晶振	Si536	XO	338 kHz	LVDS	2.5V	±7ppm
536FC106M250DGR	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	2.5V	±7ppm
536FC150M000DGR	Skyworks晶振	Si536	XO	150 MHz	LVDS	2.5V	±7ppm
536FC155M520DGR	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	2.5V	±7ppm
536FC156M250DGR	Skyworks晶振	Si536	XO	156.25 MHz	LVDS	2.5V	±7ppm
536FC159M375DGR	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	2.5V	±7ppm
536FC212M500DGR	Skyworks晶振	Si536	XO	212.5 MHz	LVDS	2.5V	±7ppm
536FC312M500DGR	Skyworks晶振	Si536	XO	312.5 MHz	LVDS	2.5V	±7ppm
500DJAA54M0000ACF	Skyworks晶振	Si500D	XO	54 MHz	LVPECL	2.5V	±10ppm
536FC159M375DG	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	2.5V	±7ppm
536FC212M500DG	Skyworks晶振	Si536	XO	212.5 MHz	LVDS	2.5V	±7ppm
536FC312M500DG	Skyworks晶振	Si536	XO	312.5 MHz	LVDS	2.5V	±7ppm
536BB000172DG	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	3.3V	±20ppm
536BB000175DG	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	3.3V	±20ppm
536BB106M250DG	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	3.3V	±20ppm
536BB150M000DG	Skyworks晶振	Si536	XO	150 MHz	LVDS	3.3V	±20ppm
536BB155M520DG	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	3.3V	±20ppm
536BB159M375DG	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	3.3V	±20ppm
536BC000172DG	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	3.3V	±7ppm
536BC000175DG	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	3.3V	±7ppm
536BC000292DG	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	3.3V	±7ppm
536BC000305DG	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	3.3V	±7ppm
536BC106M250DG	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	3.3V	±7ppm
536BC155M520DG	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	3.3V	±7ppm
536BC159M375DG	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	3.3V	±7ppm
536BC312M500DG	Skyworks晶振	Si536	XO	312.5 MHz	LVDS	3.3V	±7ppm
536FB000172DG	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	2.5V	±20ppm
536FB000175DG	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	2.5V	±20ppm
536FB000292DG	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	2.5V	±20ppm
536FB000305DG	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	2.5V	±20ppm
536FB106M250DG	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	2.5V	±20ppm
536FB150M000DG	Skyworks晶振	Si536	XO	150 MHz	LVDS	2.5V	±20ppm
536FB155M520DG	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	2.5V	±20ppm
536FB159M375DG	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	2.5V	±20ppm
536FC000172DG	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	2.5V	±7ppm
536FC000175DG	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	2.5V	±7ppm
536FC000292DG	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	2.5V	±7ppm
536FC000305DG	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	2.5V	±7ppm
536FC000338DG	Skyworks晶振	Si536	XO	338 kHz	LVDS	2.5V	±7ppm
536FC106M250DG	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	2.5V	±7ppm
536FC150M000DG	Skyworks晶振	Si536	XO	150 MHz	LVDS	2.5V	±7ppm
536FC155M520DG	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	2.5V	±7ppm
536FC156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVDS	2.5V	±7ppm
536AB000335DGR	Skyworks晶振	Si536	XO	156.2539 MHz	LVPECL	3.3V	±20ppm
536AB100M000DGR	Skyworks晶振	Si536	XO	100 MHz	LVPECL	3.3V	±20ppm
536AB125M000DGR	Skyworks晶振	Si536	XO	125 MHz	LVPECL	3.3V	±20ppm
